€1467.00
SKU: RCG12LVLB+ROG12LALL Manufacturer: Fuji Electric
Warranty: 36 months
Manufacturer: Fuji Electric
Series: LVL
Technology: Inverter
Capacity: 12 000 BTU
Energy Efficiency class (cooling): A++
Energy Efficiency class (heating): A+
Power Input Cooling/Heating: 1.05 / 1.11 kW
Power Output Cooling/Heating: 3.5 / 4.1 kW
Cassette Air Conditioner Fuji Electric RCG12LVLB+ROG12LALL 12 000 BTU
Available
Price: €1467.00

Разгледайте схеми на изплащане за този продукт


Double row fan turbine

In the fan turbine model, the airflow created is relatively narrow and cannot evenly circulate the entire heat exchanger.

The even distribution of the air flow in the heat exchanger is made possible by the new two-row turbine on two levels. This creates two separate air flows with increased efficiency.

Fuji Electric cassette LVL

Silent operation

The new optimized wing shape is based on SFD analysis, calculations and simulations to achieve optimal efficiency and quiet operation. The number of wings is 7.

Fuji Electric cassette LVL

Improved air exchange

The new louver design provides improved air exchange for maximum room comfort.

Fuji Electric cassette LVL

Operation over a wide temperature range

Fuji Electric cassette LVL
Warranty: 36 months
Manufacturer: Fuji Electric
Type: Cassette Type Air Conditioner
Technology: Inverter
Series: LVL

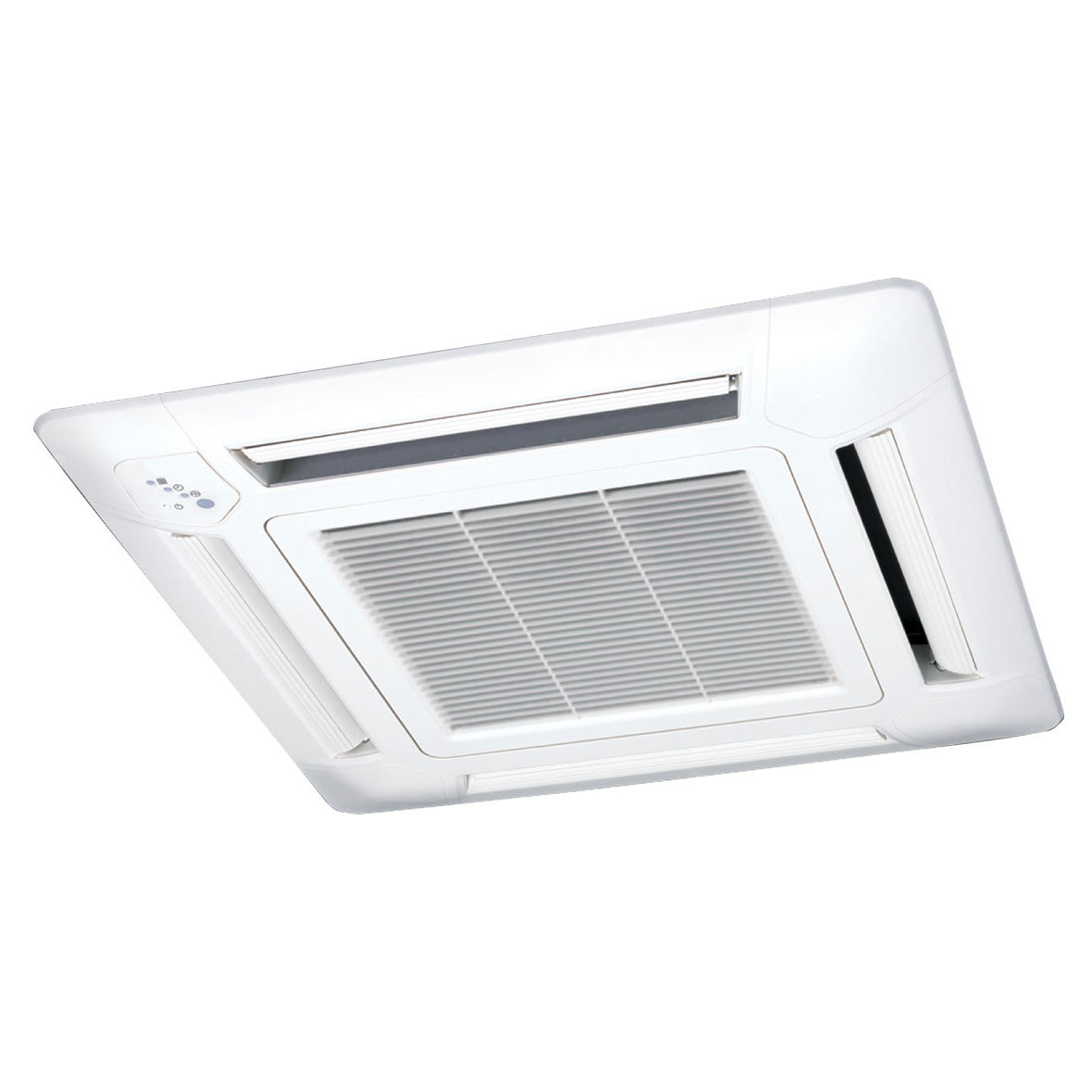

Indoor Unit: RCG12LVLB

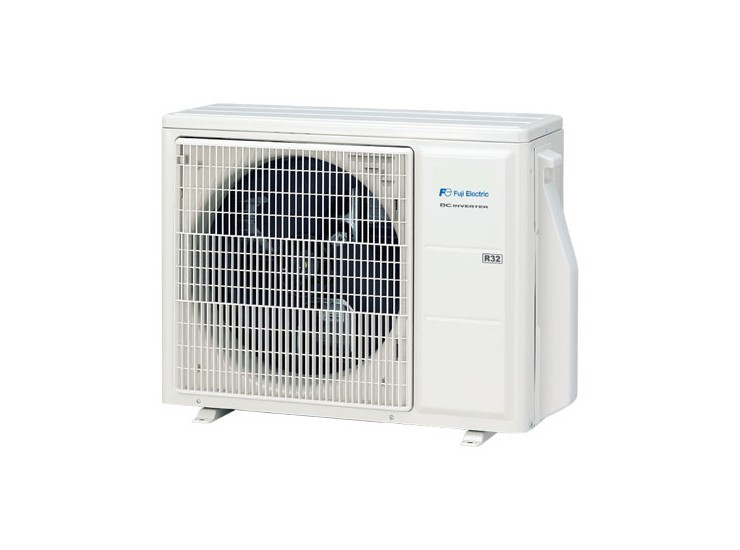

Outdoor Unit: ROG12LALL
Power Supply: 230 / 1 / 50 V/ø/Нz
Capacity: 12 000 BTU
Cooling Ca: 3.5 kW
Heating Capacity: 4.1 kW
Power Input Cooling/Heating: 1.05 / 1.11 kW
Power Output Cooling/Heating: 3.5 / 4.1 kW
SEER (Seasonal Cooling Efficiency): 6.20
SCOP (Seasonal Heating Efficiency): 4.10
EER (Energy Efficiency in Cooling): 3.33
COP (Energy Efficiency in Heating): 3.69
Energy Efficiency class (cooling): A++
Energy Efficiency class (heating): A+
Sound Pressure Indoor Unit - Cooling: 37 / 34 / 30 / 27 dB(A)
Sound Pressure Indoor Unit - Heating: 37 / 34 / 31 / 29 dB(A)
Sound Pressure Outdoor Unit - Cooling/Heating: 47 / 48 dB(A)
Sound Power Indoor Unit - Cooling/Heating: 49 / 49 dB(A)
Sound Power Outdoor Unit - Cooling/Heating: 61 / 63 dB(A)
Dimensions - Indoor Unit: 570 х 245 х 570 mm
Dimensions - Outdoor Unit: 790 х 578 х 300 mm
Weight - Indoor Unit: 15 kg
Weight - Outdoor Unit: 40 kg
Maximum Pipe Lenght: 25 m
Operation Range - Cooling: -10 ~ 46 °C
Operation Range - Heating: -15 ~ 24 °C
Refrigerant: R410А
Moisture Removal: 1.2 l/h
Cooling/heating afterload: 3.5 / 4.2 kW
Drain Pipe Diameter: 25 / 32 mm
Maximum Height Difference: 15 m
Piping Connections - Liquid/Gas: 6.35 / 9.52 mm
Air Flow Indoor / Outdoor Unit - Heating: 600 / 1630 m3/h
Air Flow Indoor / Outdoor Unit - Cooling: 600 / 1780 m3/h
