Provides 360° airflow

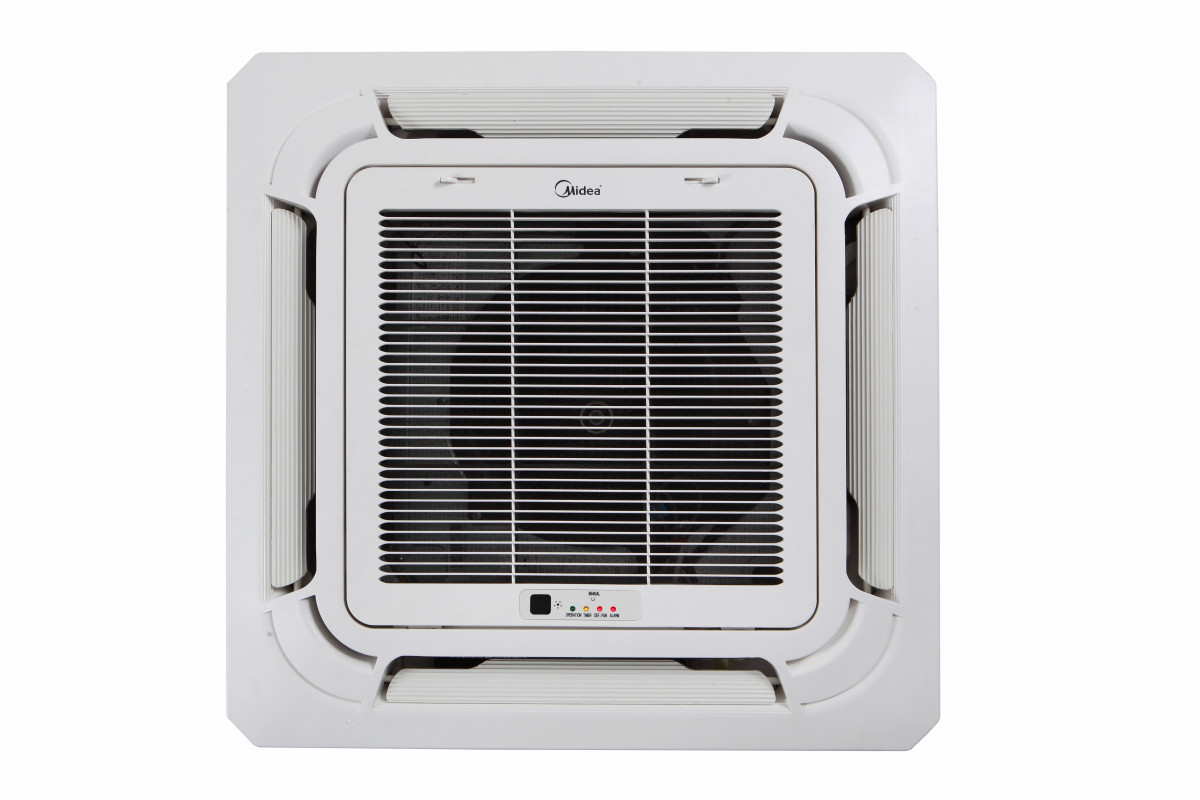

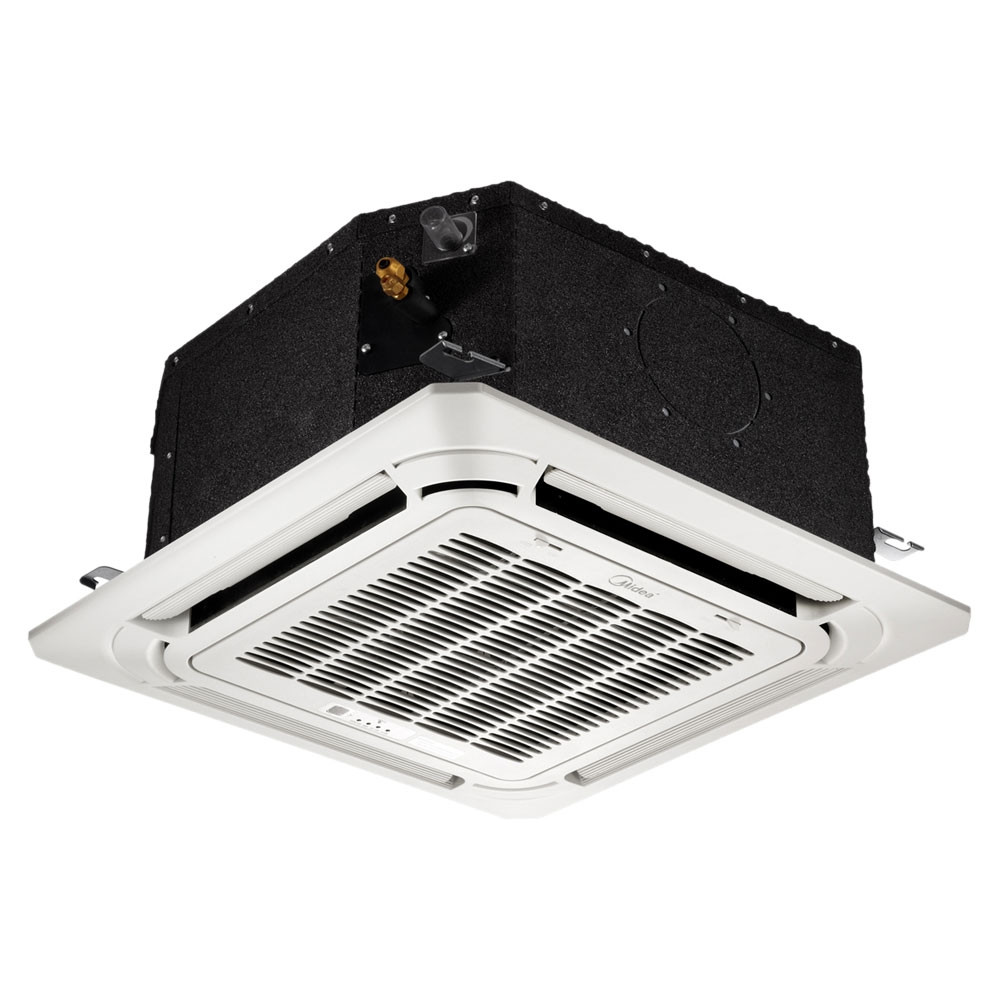

Midea's Compact Series cassette air conditioner features a unique louver design and placement that provides 360° airflow for even air conditioning in any room. It features easy and quick installation and ensures fresh air enters the room.
| Warranty: | 36 months |
| Manufacturer: | Midea |
| Series: | Compact |
| Technology: | Inverter |
| Energy Efficiency class (cooling): | A++ |
| Energy Efficiency class (heating): | A+ |
| Power Input Cooling/Heating: | 1.63 / 1.54 kW |
| Power Output Cooling/Heating: | 5.28 / 5.57 kW |
Разгледайте схеми на изплащане за този продукт
Provides 360° airflow
The unique design of the louvers and the inverter DC motor of the fan provide 360° air flow for even air conditioning of the entire room.
Remembering the position of the louvers
The position of the louvers will be maintained in their last state after switching off the air conditioning system, so that the louvers do not have to be reset after all air conditioning is switched off.
Built-in air pump
The integrated ceiling pump can raise the ceiling to 750 mm, which is sufficient for all types of ceilings. This makes installation of the air conditioning system very quick and easy.
Fresh air
Thanks to the special vents, fresh air can be sucked in from outside and brought inside the room.
Control options
Wired remote control
Additionally, a wired remote control can be connected, which has multiple functions, including setting a weekly on/off timer.
Synchronization of 2 fixtures
Two indoor units of the same model and capacity can be connected to one outdoor unit to achieve better air distribution in larger rooms. The remote control can operate both indoor units simultaneously.
| Warranty: | 36 months |
| Manufacturer: | Midea |
| Type: | Cassette Type Air Conditioner |
| Technology: | Inverter |
| Series: | Compact |
| Indoor Unit: | MCA3U-18HRFNX-QRD0W |

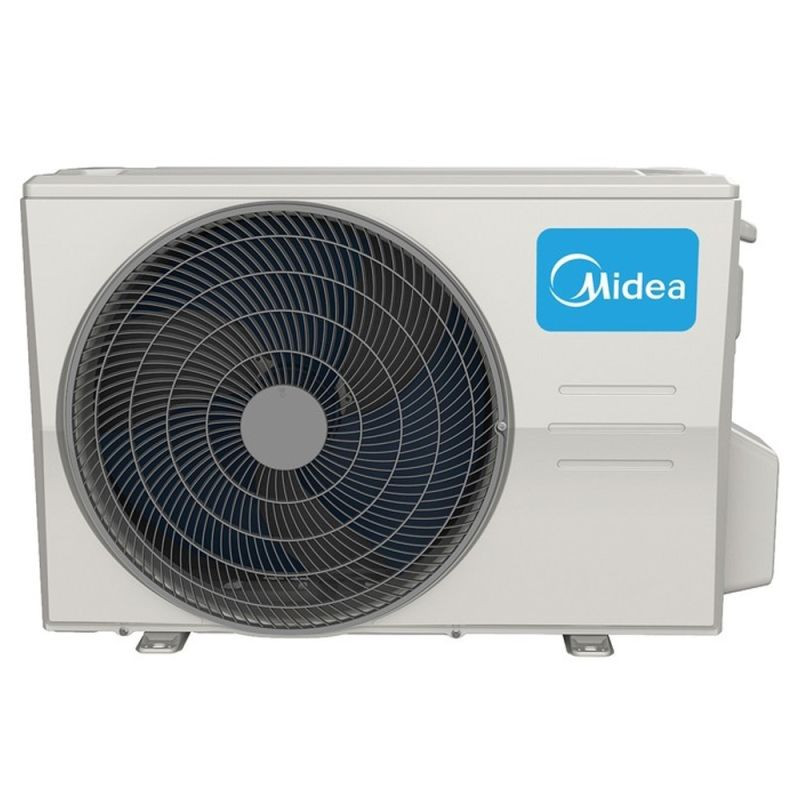

| Outdoor Unit: | MOX230-18HFN8-QRD0W |
| Power Supply: | 230 / 1 / 50 V/ø/Нz |
| Cooling Ca: | 5.28 kW |
| Heating Capacity: | 5.57 kW |
| Power Input Cooling/Heating: | 1.63 / 1.54 kW |
| Power Output Cooling/Heating: | 5.28 / 5.57 kW |
| SEER (Seasonal Cooling Efficiency): | 6.30 |
| SCOP (Seasonal Heating Efficiency): | 4.00 |
| Energy Efficiency class (cooling): | A++ |
| Energy Efficiency class (heating): | A+ |
| Sound Pressure Indoor Unit - Cooling: | 43 / 39.5 / 35.5 / 29 dB(A) |
| Sound Pressure Indoor Unit - Heating: | 43 / 39.5 / 35.5 / 29 dB(A) |
| Sound Pressure Outdoor Unit - Cooling/Heating: | 56 / 56 dB(A) |
| Sound Power Indoor Unit - Cooling/Heating: | 59 / 59 dB(A) |
| Sound Power Outdoor Unit - Cooling/Heating: | 65 / 65 dB(A) |
| Dimensions - Indoor Unit: | 570 х 260 х 570 Ш х В х Д mm |
| Dimensions - Outdoor Unit: | 805 х 554 х 330 Ш х В х Д mm |
| Weight - Indoor Unit: | 16 kg |
| Weight - Outdoor Unit: | 32.5 kg |
| Maximum Pipe Lenght: | 30 m |
| Operation Range - Cooling: | -15 ~ 50 °C |
| Operation Range - Heating: | -25 ~ 24 °C |
| Refrigerant: | R32 |
| Maximum Height Difference: | 20 m |
| Piping Connections - Liquid/Gas: | 6.35 / 9.52 mm |
| Air Flow Indoor / Outdoor Unit - Cooling: | 720 / 620 / 500 / 2100 m3/h |
| Current for Cooling/Heating: | 7.2 (3.2 - 9.2) / 6.8 (3.1 - 8.5) A |
