Easy installation
The new design of the mounting hooks allows for a much easier installation of the indoor unit, while the pump is easily accessible and can be easily attached.
Warranty: | 36 months |
Manufacturer: | Midea |
Series: | Super Slim монофазни |
Technology: | Inverter |
Energy Efficiency class (cooling): | A++ |
Energy Efficiency class (heating): | A+ |
Power Input Cooling/Heating: | 2.75 / 2.45 kW |
Power Output Cooling/Heating: | 8.79 / 9.38 kW |
Provides 360° airflow

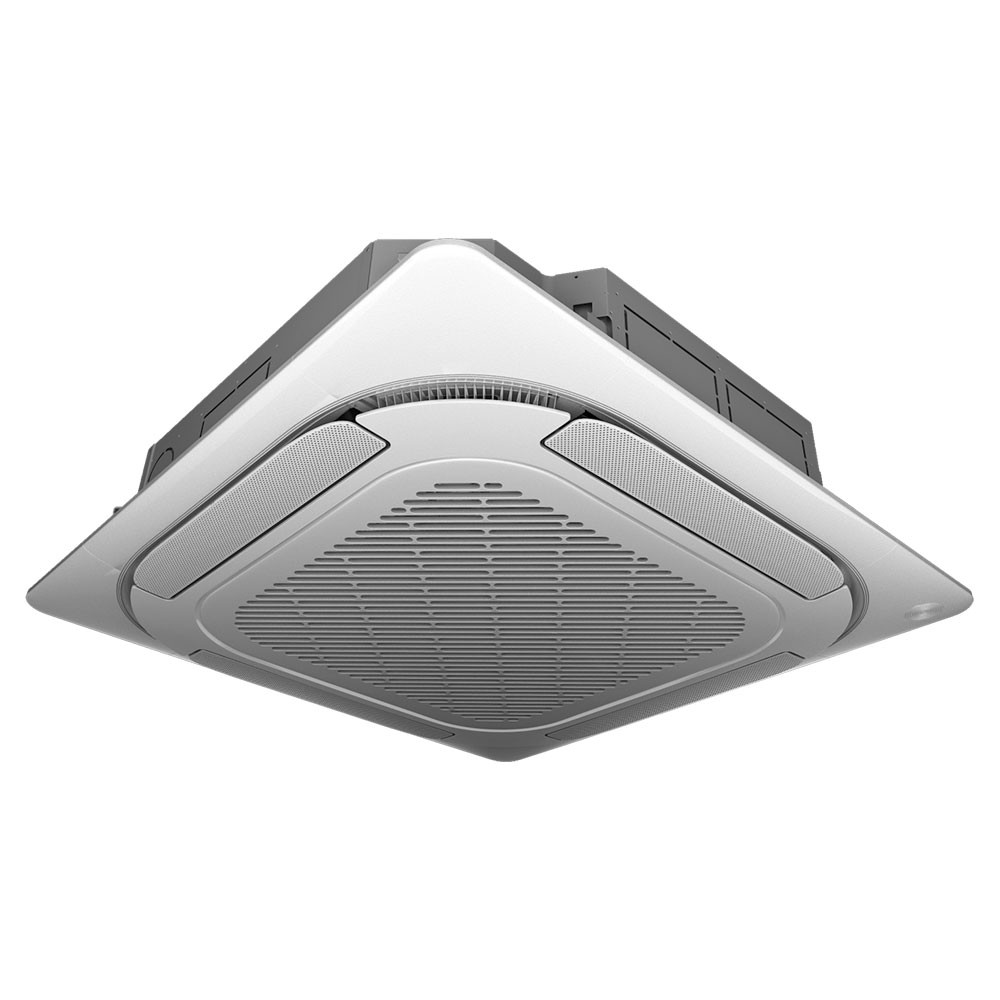

Midea's Super Slim series cassette air conditioner features a unique louver design and placement that provides 360° airflow for even air conditioning in any room. It features easy and quick installation and ensures fresh air enters the room.

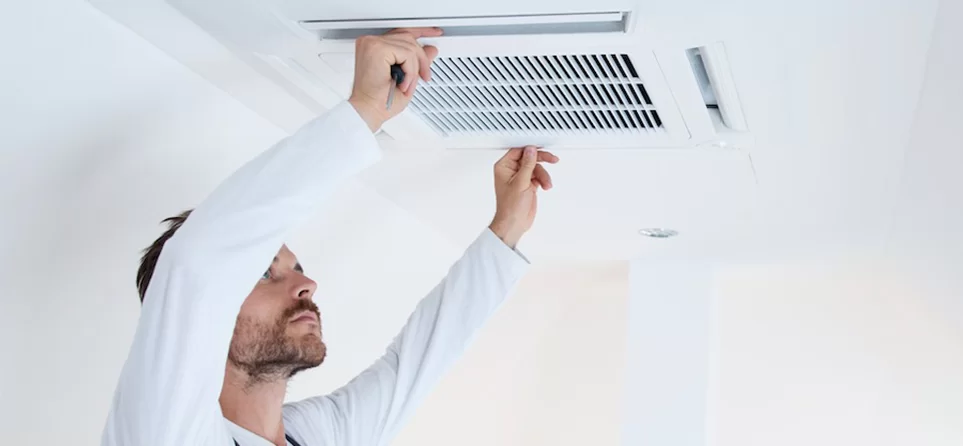

Easy installation
The new design of the mounting hooks allows for a much easier installation of the indoor unit, while the pump is easily accessible and can be easily attached.
Intelligent economy
The human activity sensor monitors the presence of people in the room and adjusts the system's output to ensure perfect comfort.
Reliable performance

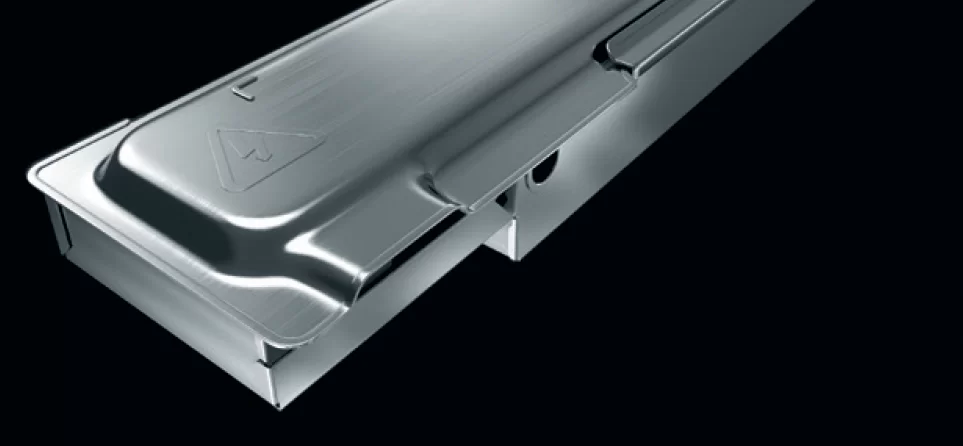

The condensate bath from AVS is more burst-proof than ever, and the new electrical box іЕ-bох is fully protected against fire, moisture and even insect infestation.
Warranty: | 36 months |
Manufacturer: | Midea |
Type: | Cassette Type Air Conditioner |
Technology: | Inverter |
Series: | Super Slim монофазни |
Indoor Unit: | MCD1-30HRFNX-QRD0W |

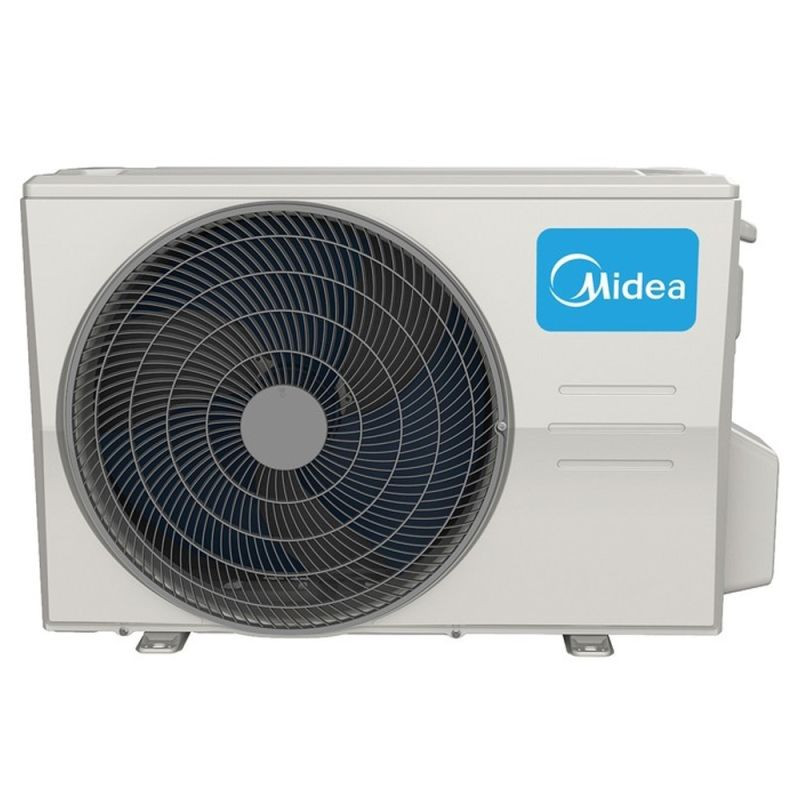

Outdoor Unit: | MOD3OU-30HFN8-QRD0W |
Power Supply: | 230 / 1 / 50 V/ø/Нz |
Cooling Ca: | 8.79 kW |
Heating Capacity: | 9.38 kW |
Power Input Cooling/Heating: | 2.75 / 2.45 kW |
Power Output Cooling/Heating: | 8.79 / 9.38 kW |
SEER (Seasonal Cooling Efficiency): | 6.60 |
SCOP (Seasonal Heating Efficiency): | 4.20 |
Energy Efficiency class (cooling): | A++ |
Energy Efficiency class (heating): | A+ |
Sound Pressure Indoor Unit - Cooling: | 49.5 / 47 / 44 / 38.5 dB(A) |
Sound Pressure Indoor Unit - Heating: | 49.5 / 47 / 44 / 38.5 dB(A) |
Sound Pressure Outdoor Unit - Cooling/Heating: | 62 / 62 dB(A) |
Sound Power Indoor Unit - Cooling/Heating: | 63 / 63 dB(A) |
Sound Power Outdoor Unit - Cooling/Heating: | 70 / 70 dB(A) |
Dimensions - Indoor Unit: | 830 х 245 х 830 Ш х В х Д mm |
Dimensions - Outdoor Unit: | 946 х 810 х 410 Ш х В х Д mm |
Weight - Indoor Unit: | 24.6 kg |
Weight - Outdoor Unit: | 52.8 kg |
Maximum Pipe Lenght: | 50 m |
Operation Range - Cooling: | -15 ~ 50 °C |
Operation Range - Heating: | -25 ~ 24 °C |
Refrigerant: | R32 |
Maximum Height Difference: | 25 m |
Piping Connections - Liquid/Gas: | 9.52 / 15.9 mm |
Current for Cooling/Heating: | 12.00 (2.00 ~ 13.00) / 11.00 (3.00 ~ 11.50) A |
