Stylish design

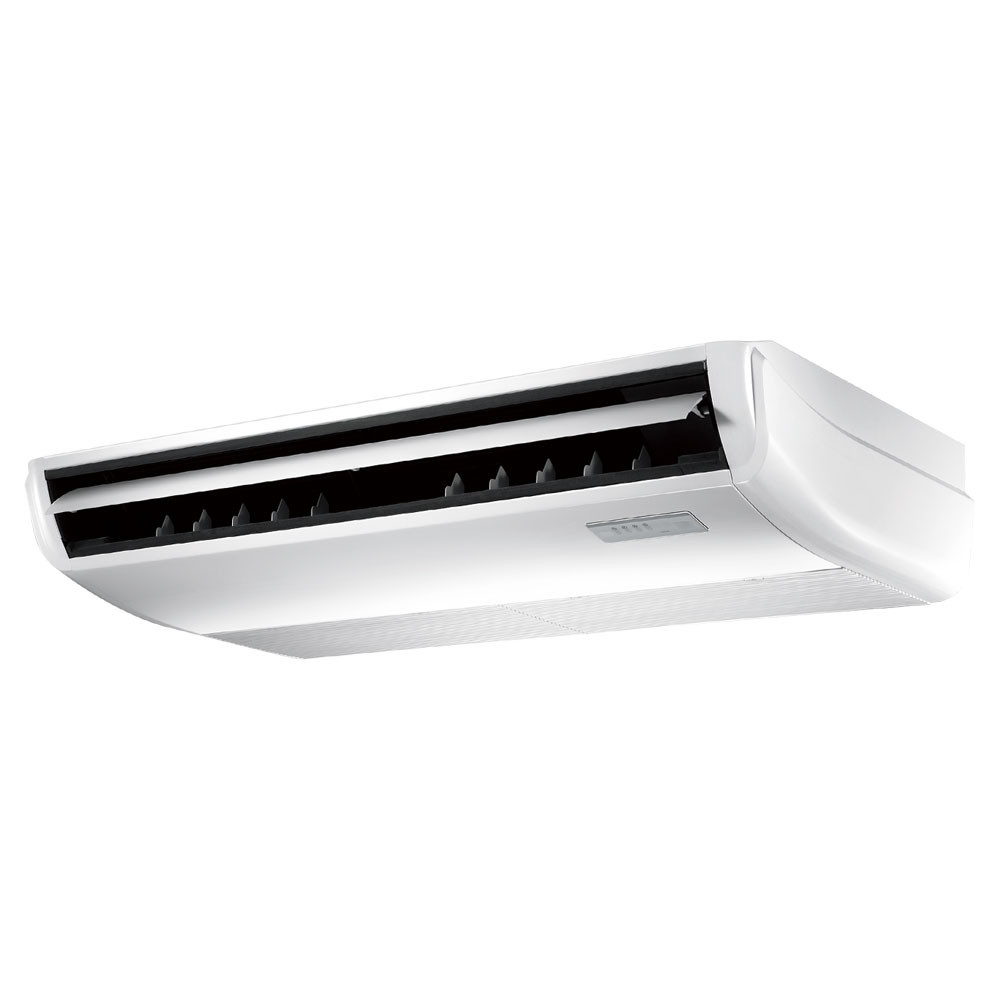

Midea's new three-phase floor-standing air conditioner 36 000 BTU impresses with its clean design, 3D airflow and the fresh air it brings to any room. An excellent choice for installation low down, or in the ceiling.
Warranty: | 36 months |
Manufacturer: | Midea |
Series: | MUE трифазни |
Technology: | Inverter |
Capacity: | 36 000 BTU |
Energy Efficiency class (cooling): | A++ |
Energy Efficiency class (heating): | A+ |
Power Input Cooling/Heating: | 4.00 / 3.35 kW |
Power Output Cooling/Heating: | 10.55 / 11.72 kW |
3D Airflow
The indoor unit features automatic horizontal and vertical soaring to ensure even air conditioning in the room.
Easy service
More than 60% of the components are the same for all six models, which makes repairing and servicing air conditioning systems a breeze.
Wired remote control
The wired remote control has multiple functions, including setting a weekly on/off timer.
Fresh air
The indoor unit has an opening through which it can draw in fresh air from outside.
Warranty: | 36 months |
Manufacturer: | Midea |
Type: | Ceiling-Floor Type Air Conditioner |
Technology: | Inverter |
Series: | MUE трифазни |

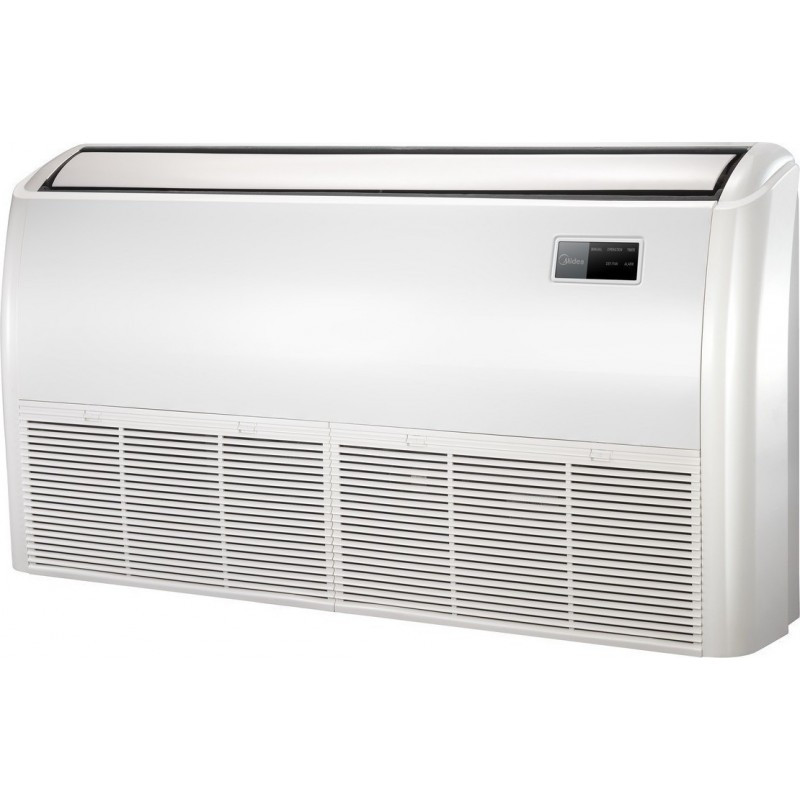

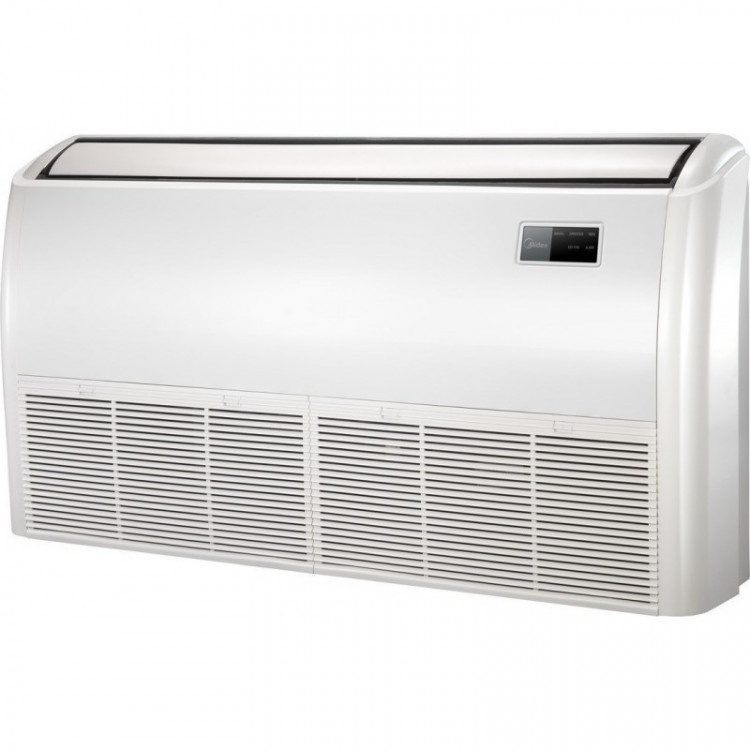

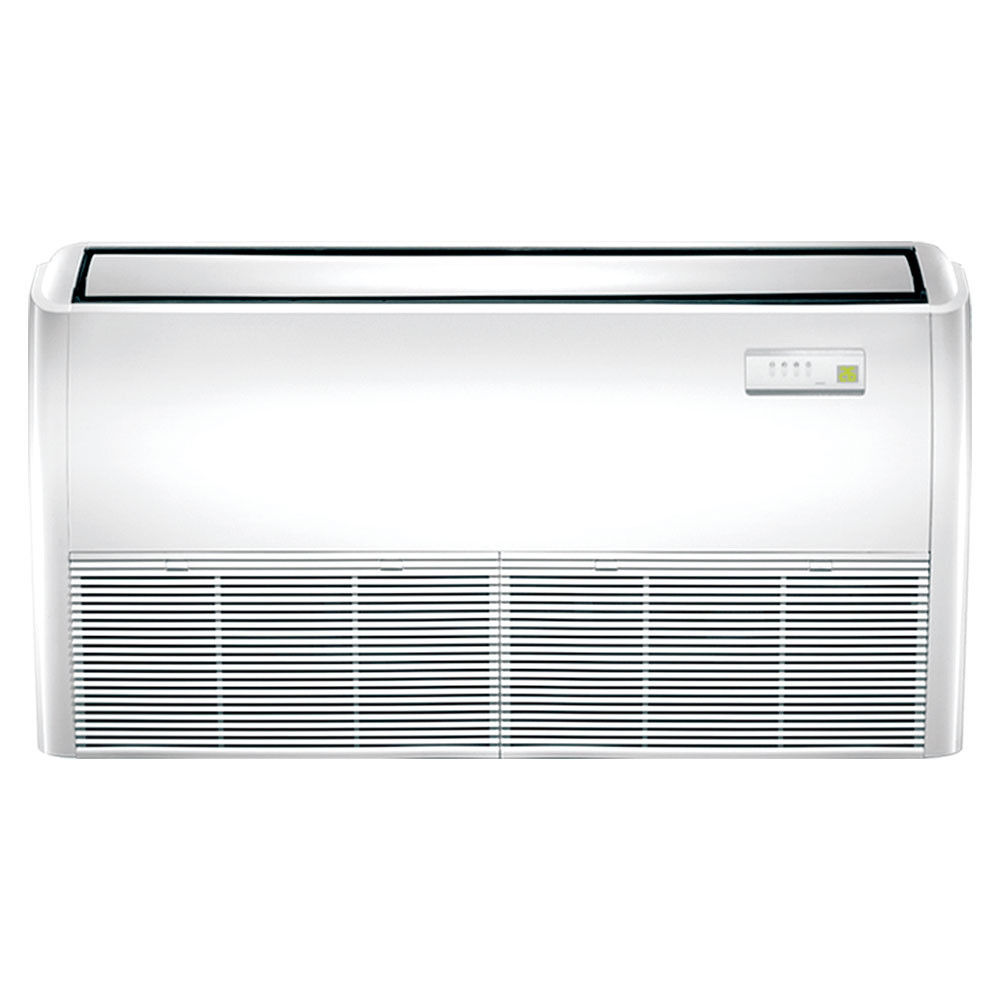

Indoor Unit: | MUE-36HRFNX-QRD0W |

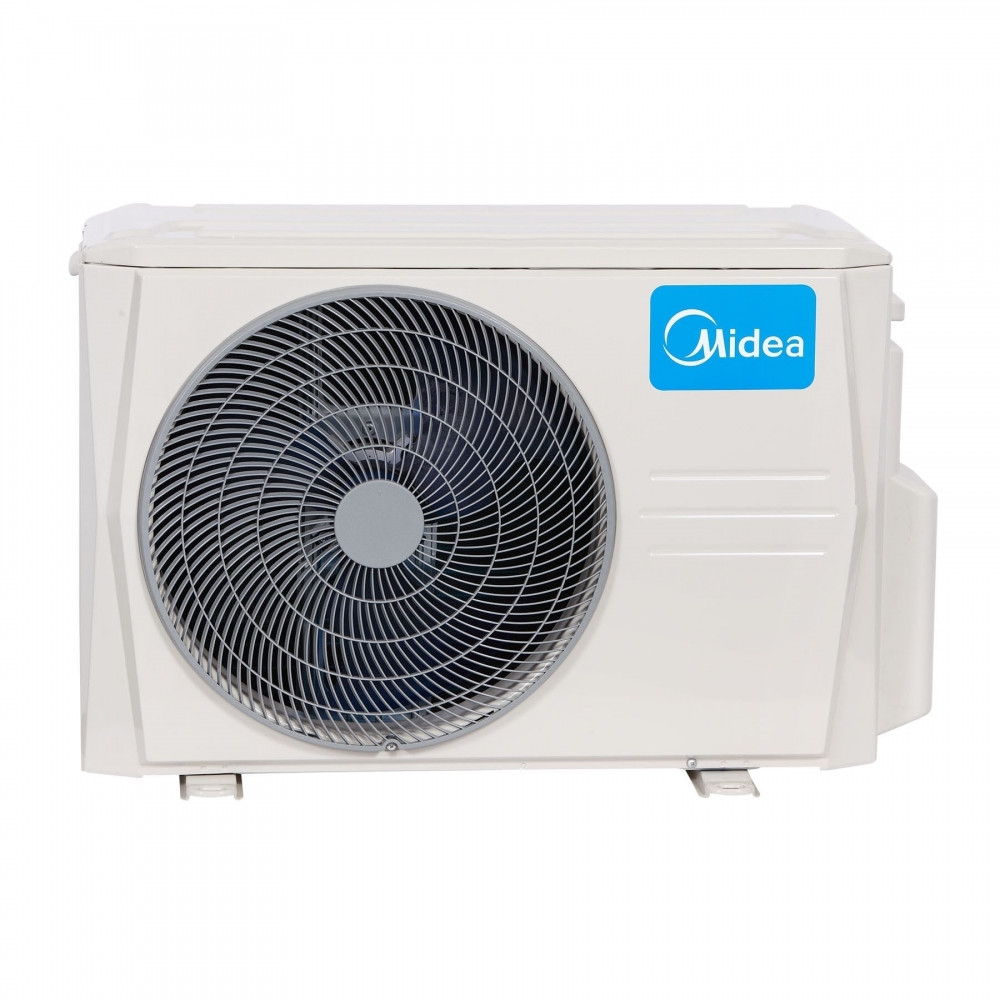

Outdoor Unit: | MOD30U-36HFN8-QRD0W |
Power Supply: | 230 / 1 / 50 V/ø/Нz |
Capacity: | 36 000 BTU |
Cooling Ca: | 10.55 kW |
Heating Capacity: | 11.72 kW |
Power Input Cooling/Heating: | 4.00 / 3.35 kW |
Power Output Cooling/Heating: | 10.55 / 11.72 kW |
SEER (Seasonal Cooling Efficiency): | 6.20 |
SCOP (Seasonal Heating Efficiency): | 4.10 |
Energy Efficiency class (cooling): | A++ |
Energy Efficiency class (heating): | A+ |
Sound Pressure Indoor Unit - Cooling: | 51 / 47.5 / 44.5 / 39 dB(A) |
Sound Pressure Indoor Unit - Heating: | 51 / 47.5 / 44.5 / 39 dB(A) |
Sound Pressure Outdoor Unit - Cooling/Heating: | 63 / 63 dB(A) |
Sound Power Indoor Unit - Cooling/Heating: | 65 / 65 dB(A) |
Sound Power Outdoor Unit - Cooling/Heating: | 70 / 70 dB(A) |
Dimensions - Indoor Unit: | 1650 х 235 x 675 ШхВхД mm |
Dimensions - Outdoor Unit: | 946 х 810 х 410 ШхВхД mm |
Weight - Indoor Unit: | 41.5 kg |
Weight - Outdoor Unit: | 80.5 kg |
Maximum Pipe Lenght: | 75 m |
Operation Range - Cooling: | -15 ~ 50 °C |
Operation Range - Heating: | -15 ~ 24 °C |
Refrigerant: | R32 |
Maximum Height Difference: | 30 m |
Piping Connections - Liquid/Gas: | 9.52 / 15.9 mm |
Air Flow Indoor / Outdoor Unit - Cooling: | 1955 / 1728 / 1504 / 4000 m3/h |
Current for Cooling/Heating: | 6.30 (1.40 ~ 6.80) / 5.40 (1.30 ~ 6.20) A |
