Excellent mode of operation
The three-phase inverter Midea MFGA-55FN1RD0 has a cooling/heating energy efficiency of A++/A+, a humidity control function and an additional electric heater for powerful heating even on the coldest winter days. Suitable for air conditioning of large dens, production and industrial premises with high ceilings.
Warranty: | 36 months |
Manufacturer: | Midea |
Series: | MFGA |
Technology: | Inverter |
Energy Efficiency class (cooling): | A++ |
Energy Efficiency class (heating): | A+ |
Power Input Cooling/Heating: | 6.71 / 5.31 + 3.50 kW |
Power Output Cooling/Heating: | 16.12 / 17.00 kW |

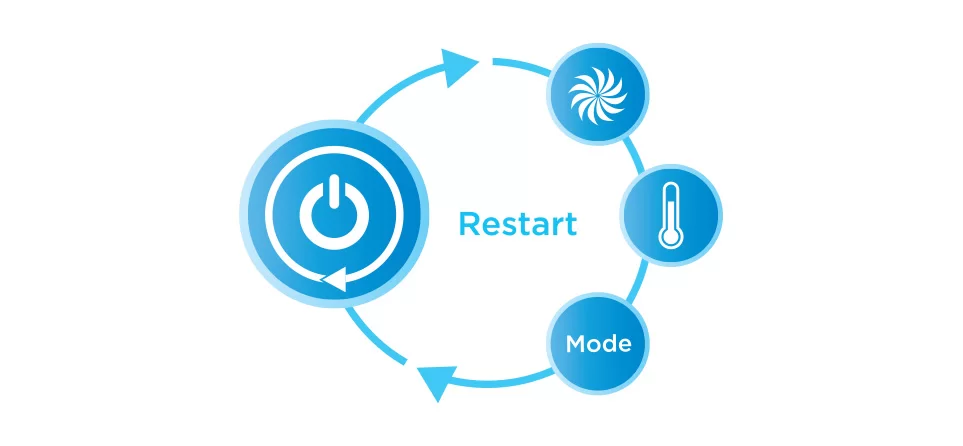

Automatic restart
Upon power-up and power-down, the system will automatically restart in the last set operating mode.

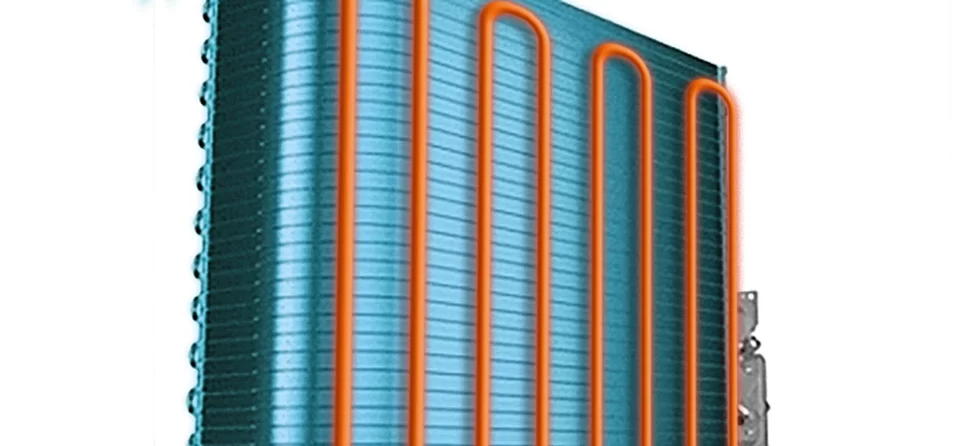

Additional electric heater
Midea's GIA series heat pump system is equipped with an additional electric heater for more efficient heating during a winter day.
Self-diagnosis
In the event of a fault or glitch in the system it will automatically stop working and shut down. This ensures the protection of the air conditioning system and at the same time the indoor unit will report an error.
Humidity reduction mode
Activating this mode reduces the humidity in the conditioned room air by alternating between cooling mode and fan mode.
Warranty: | 36 months |
Manufacturer: | Midea |
Type: | Floor Standing Air Conditioner |
Technology: | Inverter |
Series: | MFGA |

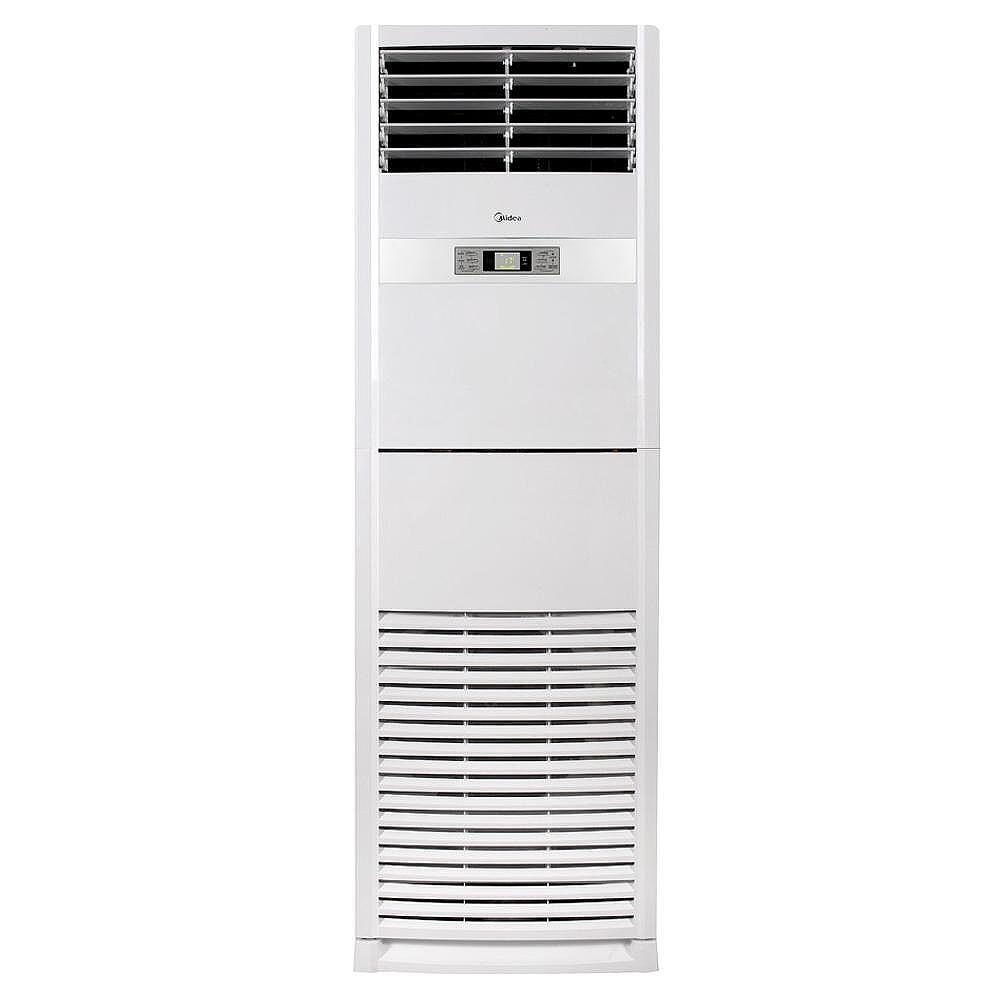

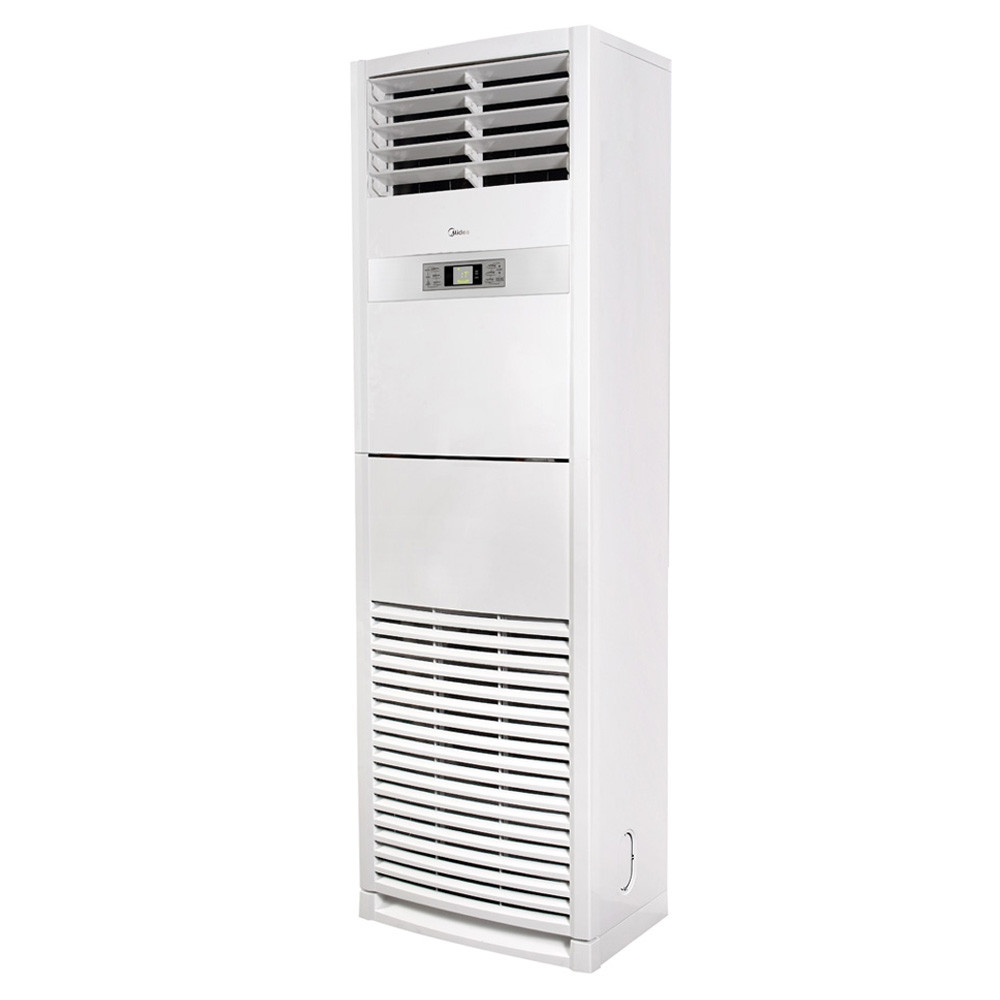

Indoor Unit: | MFGA-55FN1RD0 |

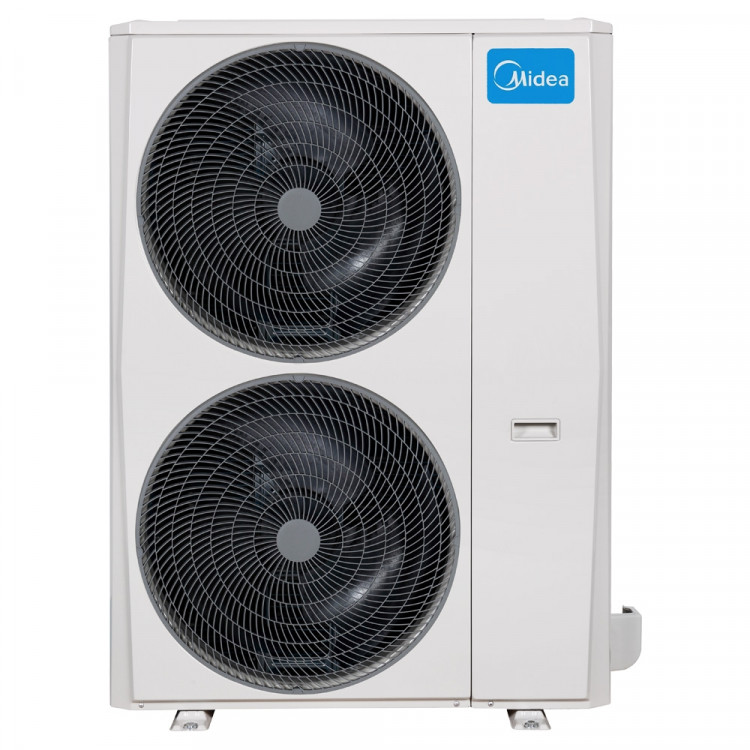

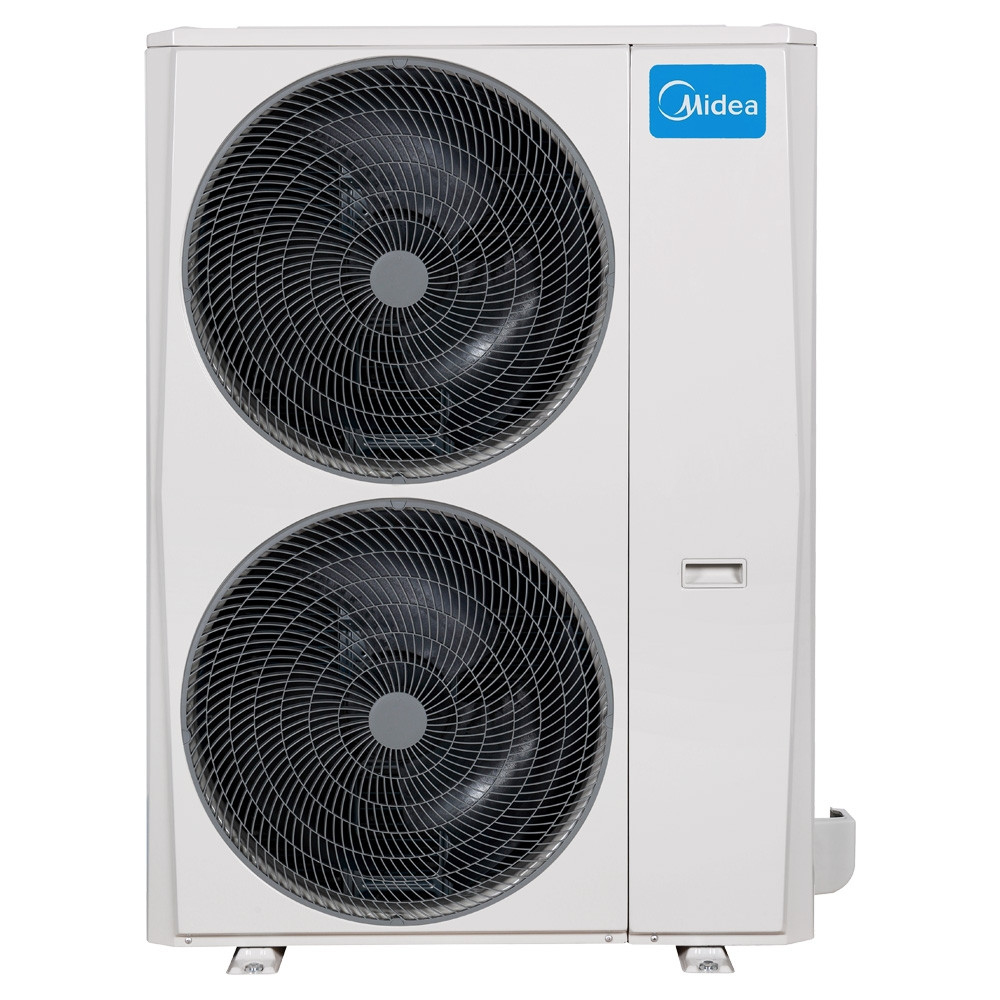

Outdoor Unit: | MOU-55FN1-RD0 |
Power Supply: | 380-415 / 3 / 50 V/ø/Нz |
Cooling Ca: | 16.12 kW |
Heating Capacity: | 17.00 kW |
Power Input Cooling/Heating: | 6.71 / 5.31 + 3.50 kW |
Power Output Cooling/Heating: | 16.12 / 17.00 kW |
SEER (Seasonal Cooling Efficiency): | 6.00 |
SCOP (Seasonal Heating Efficiency): | 4.00 |
Energy Efficiency class (cooling): | A++ |
Energy Efficiency class (heating): | A+ |
Sound Pressure Indoor Unit - Cooling: | 58 / 54 / 49 dB(A) |
Sound Pressure Indoor Unit - Heating: | 58 / 54 / 49 dB(A) |
Sound Pressure Outdoor Unit - Cooling/Heating: | 67 / 67 dB(A) |
Sound Power Indoor Unit - Cooling/Heating: | 67 / 67 dB(A) |
Sound Power Outdoor Unit - Cooling/Heating: | 70 / 70 dB(A) |
Dimensions - Indoor Unit: | 610 х 1925 х 390 ШхВхД mm |
Dimensions - Outdoor Unit: | 952 х 1333 х 415 ШхВхД mm |
Weight - Indoor Unit: | 60.8 kg |
Weight - Outdoor Unit: | 112.8 kg |
Maximum Pipe Lenght: | 65 m |
Operation Range - Cooling: | -15 ~ 50 °C |
Operation Range - Heating: | -15 ~ 24 °C |
Refrigerant: | R410А |
Maximum Height Difference: | 30 m |
Piping Connections - Liquid/Gas: | 9.52 / 15.90 mm |
Air Flow Indoor / Outdoor Unit - Cooling: | 2285 / 1927 / 1479 / 6000 m3/h |
