Connection with up to 3 indoor units
Midea's M3OF-21HFN8-Q outdoor unit is suitable for connecting with up to 3-indoor units for a multisplit system to meet any demand for optimisation. Thanks to the advanced inverter technology of the Medea multi-split, the system achieves exceptional energy efficiency.
| Warranty: | 36 months |
| Manufacturer: | Midea |
| Series: | FULL DC INVERTER R32 |
| Technology: | Inverter |
| Capacity: | 21 000 BTU |
| Energy Efficiency class (cooling): | A++ |
| Energy Efficiency class (heating): | A+ |
| Power Input Cooling/Heating: | 1.95 / 1.78 kW |
| Power Output Cooling/Heating: | 6.15 / 6.59 kW |
Разгледайте схеми на изплащане за този продукт
The new R32 Freon with care for the environment

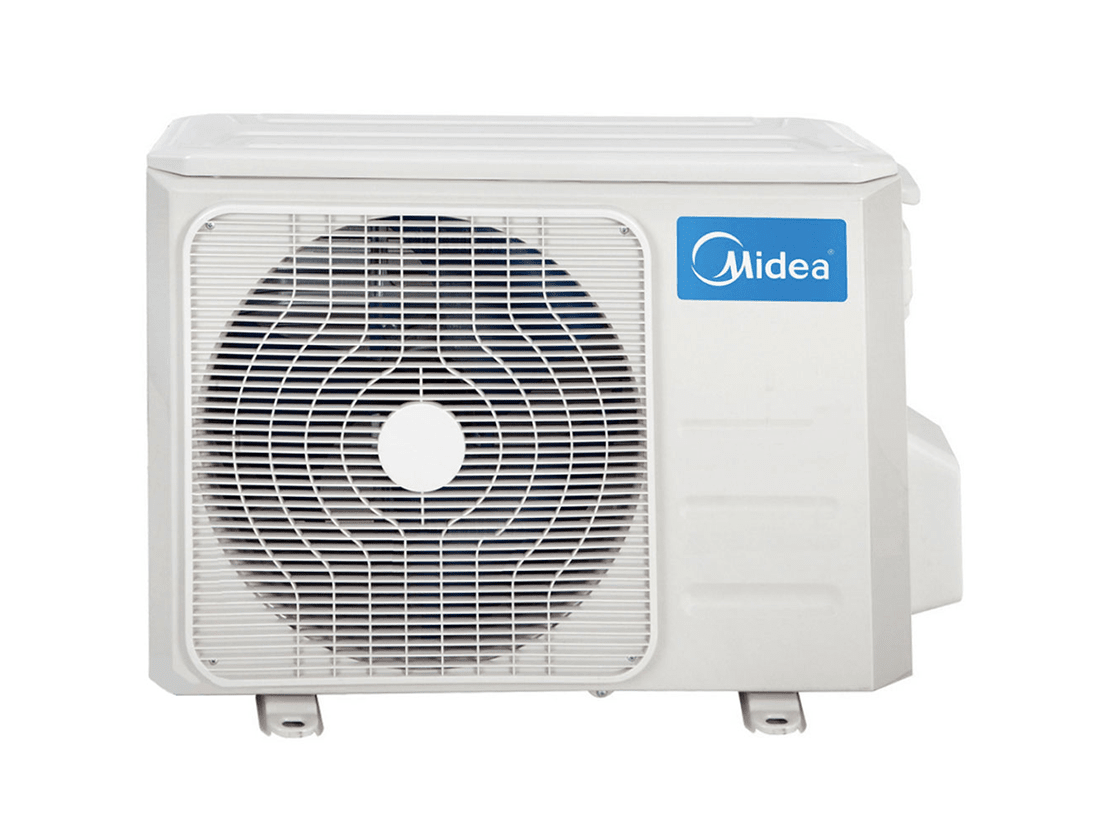

The M3OF-21HFN8-Q is a three-room multisplit with 6.59 kW of heating and 6.15 kW of cooling. Thanks to the advanced inverter technology of the Midea multisplit, the system achieves exceptional energy efficiency. A wide range of indoor unit types can be connected to the outdoor unit to satisfy any demand for air conditioning. Thanks to the use of the new Freon R32, the energy efficiency is of a high level: A++/A+, while at the same time reducing the pollution of the environment.
All multisplit systems of this series can be controlled by the intelligent Mіdea ĸontrols.
| Warranty: | 36 months |
| Manufacturer: | Midea |
| Type: | Multi-split system |
| Technology: | Inverter |
| Series: | FULL DC INVERTER R32 |
| Outdoor Unit: | M3OF-21HFN8-Q |
| Power Supply: | 230 / 1 / 50 V/ø/Нz |
| Capacity: | 21 000 BTU |
| Cooling Ca: | 6.15 kW |
| Heating Capacity: | 6.59 kW |
| Power Input Cooling/Heating: | 1.95 / 1.78 kW |
| Power Output Cooling/Heating: | 6.15 / 6.59 kW |
| SEER (Seasonal Cooling Efficiency): | 6.10 |
| SCOP (Seasonal Heating Efficiency): | 4.0 |
| Energy Efficiency class (cooling): | A++ |
| Energy Efficiency class (heating): | A+ |
| Sound Pressure Outdoor Unit - Cooling/Heating: | 57.5 / 57.5 dB(A) |
| Sound Power Outdoor Unit - Cooling/Heating: | 65 / 65 dB(A) |
| Dimensions - Outdoor Unit: | 845 х 702 х 363 ШхBхД mm |
| Weight - Outdoor Unit: | 46.8 kg |
| Operation Range - Cooling: | -15 ~ 50 °C |
| Operation Range - Heating: | -15 ~ 24 °C |
| Refrigerant: | R32 |
| Cooling/heating afterload: | - / 5.6 kW |
| Maximum Height Difference: | 15 m |
| Piping Connections - Liquid/Gas: | 3 х 6.35 / 3 х 9.52 mm |
| Air Flow Indoor / Outdoor Unit - Heating: | - / 3000 m3/h |
| Air Flow Indoor / Outdoor Unit - Cooling: | - / 3000 m3/h |
| Current for Cooling/Heating: | 9.00 (1.09 - 9.90) / 8.50 (1.94 - 8.50) A |
| Maximum number of indoor units: | 3 |
