Connection with up to 4 indoor units

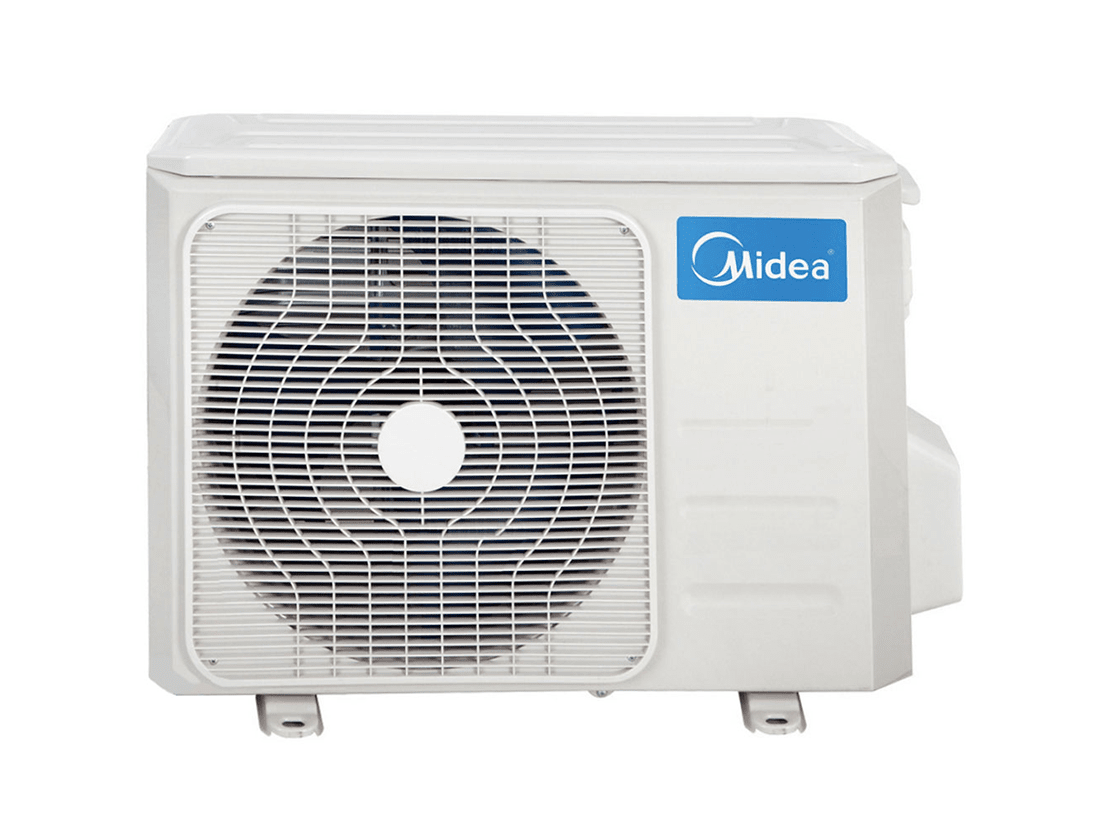

Midea's M4O-36FN8-Q outdoor unit is suitable for connecting with up to 4-indoor units for a multisplit system to meet any demand for optimisation. Thanks to the advanced inverter technology of the Medea multi-split, the system achieves exceptional energy efficiency.
| Warranty: | 36 months |
| Manufacturer: | Midea |
| Series: | FULL DC INVERTER R410A |
| Technology: | Inverter |
| Capacity: | 36 000 BTU |
| Energy Efficiency class (cooling): | A++ |
| Energy Efficiency class (heating): | A |
| Power Output Cooling/Heating: | 10.6 / 11.1 kW |
Разгледайте схеми на изплащане за този продукт
With Freon R410
The M4O-36FN1-Q is a four-room multisplit with 8.79 kW of heating and 8.20 kW of cooling. Thanks to the advanced inverter technology of the Midea multi split, the system achieves exceptional energy efficiency. A wide range of indoor unit types can be connected to the outdoor unit to satisfy any demand for air conditioning. Thanks to the use of R410A Freon, the energy efficiency is of high quality: A++/A, while reducing the pollution of the environment.
| Warranty: | 36 months |
| Manufacturer: | Midea |
| Type: | Multi-split system |
| Technology: | Inverter |
| Series: | FULL DC INVERTER R410A |
| Outdoor Unit: | M4O-36FN8-Q |
| Power Supply: | 230 / 1 / 50 V/ø/Нz |
| Capacity: | 36 000 BTU |
| Cooling Ca: | 10.6 kW |
| Heating Capacity: | 11.1 kW |
| Power Output Cooling/Heating: | 10.6 / 11.1 kW |
| SEER (Seasonal Cooling Efficiency): | 6.20 |
| SCOP (Seasonal Heating Efficiency): | 3.80 |
| Energy Efficiency class (cooling): | A++ |
| Energy Efficiency class (heating): | A |
| Sound Pressure Outdoor Unit - Cooling/Heating: | 60 / 60 dB(A) |
| Sound Power Outdoor Unit - Cooling/Heating: | 67 / 67 dB(A) |
| Dimensions - Outdoor Unit: | 946 х 810 х 410 ШхBхД mm |
| Weight - Outdoor Unit: | 68.8 kg |
| Operation Range - Cooling: | -15 ~ 50 °C |
| Operation Range - Heating: | -15 ~ 24 °C |
| Refrigerant: | R410А |
| Cooling/heating afterload: | - / 6.50 kW |
| Maximum Height Difference: | 15 m |
| Piping Connections - Liquid/Gas: | 3 x 6.35 / 9.52 mm |
| Air Flow Indoor / Outdoor Unit - Heating: | - / 4000 m3/h |
| Air Flow Indoor / Outdoor Unit - Cooling: | - / 4000 m3/h |
| Current for Cooling/Heating: | 15.0 (1.5 - 18.5) / 12.1 (2.1 - 18.4) A |
| Maximum number of indoor units: | 4 |
