€1458.00
SKU: RDG14LLTB+ROG14LALL Manufacturer: Fuji Electric

Slim and compact profile

The slim profile of Fuji Electric's LLT series inverter ducted air conditioner allows it to be installed in rooms with low ceilings or limited distance between the standard and suspended ceiling.

Warranty: 36 months
Manufacturer: Fuji Electric
Series: LLT
Technology: Inverter
Capacity: 14 000 BTU
Energy Efficiency class (cooling): A+
Energy Efficiency class (heating): A
Power Input Cooling/Heating: 1.33 / 1.34 kW
Power Output Cooling/Heating: 4.3 / 5.0 kW
Duct Type Air Conditioner Fuji Electric RDG14LLTB+ROG14LALL 14 000 BTU
Available
Price: €1458.00

Разгледайте схеми на изплащане за този продукт


Slim profile

The thin profile of the air conditioner allows it to be installed in rooms with low ceilings or limited distance between the standard ceiling and the suspended ceiling.

Flexible installation

The system can be installed in two ways.



Wide static pressure (head) range

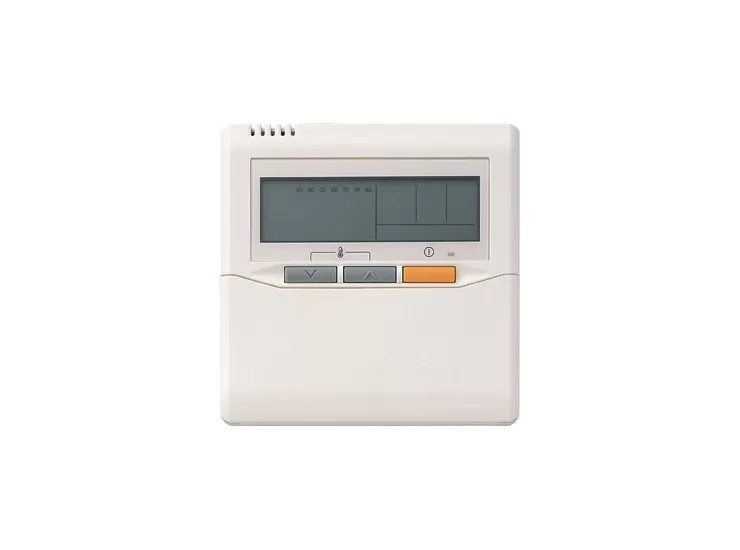

With the blower motor running in a straight line, it is possible to vary the static pressure over a range from 0 to 90 Pa. The static pressure can be changed from the remote control.

Decorative pedestal with automatic louvers (optional)

The stylish decorative grille provides comfort in terms of air flow and also blends well with luxury furnishings.

Warranty: 36 months
Manufacturer: Fuji Electric
Type: Duct Type Air Conditioner
Technology: Inverter
Series: LLT

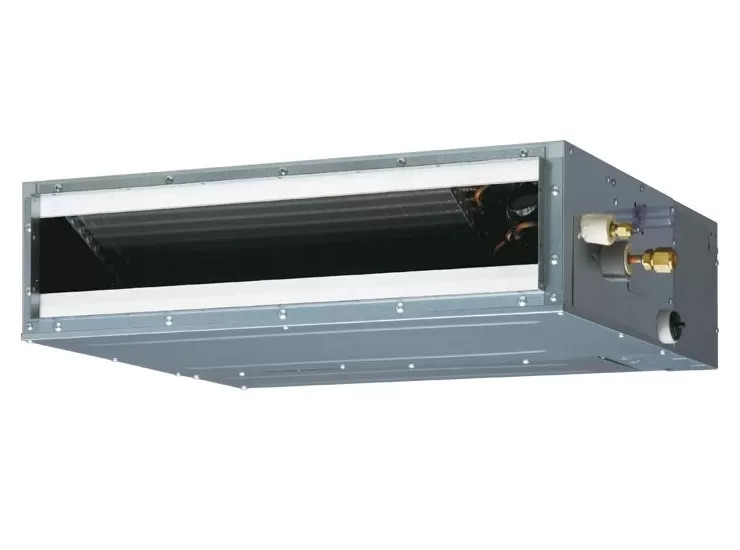

Indoor Unit: RDG14LLTB

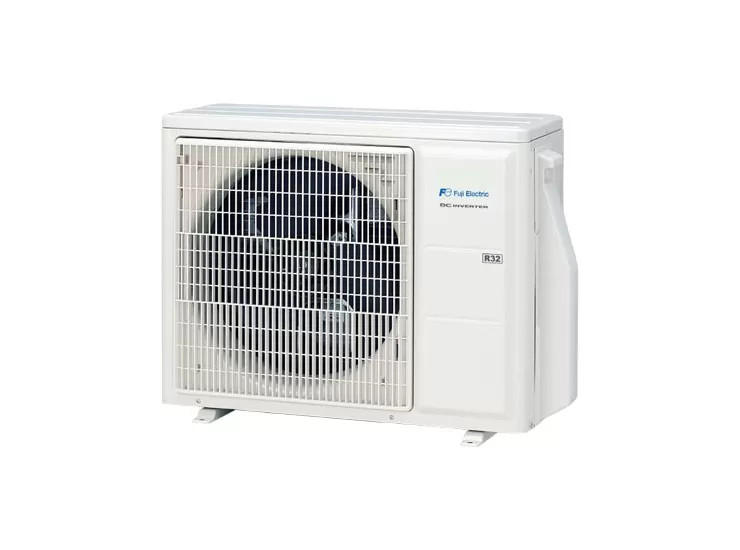

Outdoor Unit: ROG14LALL
Power Supply: 230 / 1 / 50 V/ø/Нz
Capacity: 14 000 BTU
Cooling Ca: 4.3 kW
Heating Capacity: 5.0 kW
Power Input Cooling/Heating: 1.33 / 1.34 kW
Power Output Cooling/Heating: 4.3 / 5.0 kW
SEER (Seasonal Cooling Efficiency): 5.80
SCOP (Seasonal Heating Efficiency): 3.90
EER (Energy Efficiency in Cooling): 3.21
COP (Energy Efficiency in Heating): 3.71
Energy Efficiency class (cooling): A+
Energy Efficiency class (heating): A
Sound Pressure Indoor Unit - Cooling: 32 / 30 / 28 / 26 dB(A)
Sound Pressure Indoor Unit - Heating: 32 / 30 / 28 / 25 dB(A)
Sound Pressure Outdoor Unit - Cooling/Heating: 49 / 49 dB(A)
Sound Power Indoor Unit - Cooling/Heating: 60 / 60 dB(A)
Sound Power Outdoor Unit - Cooling/Heating: 62 / 64 dB(A)
Dimensions - Indoor Unit: 700 х 198 х 620 mm
Dimensions - Outdoor Unit: 790 х 578 х 300 mm
Weight - Indoor Unit: 19 kg
Weight - Outdoor Unit: 40 kg
Maximum Pipe Lenght: 25 m
Operation Range - Cooling: -10 ~ 46 °C
Operation Range - Heating: -15 ~ 24 °C
Refrigerant: R410А
Moisture Removal: 1.5 l/h
Drain Pipe Diameter: 25 / 32 mm
Maximum Height Difference: 10 m
Piping Connections - Liquid/Gas: 6.35 / 12.7 mm
Air Flow Indoor / Outdoor Unit - Heating: 800 / 1740 m3/h
Air Flow Indoor / Outdoor Unit - Cooling: 800 / 1910 m3/h
Current for Cooling/Heating: 9.0 / 12.5 A
