Optimal operating mode

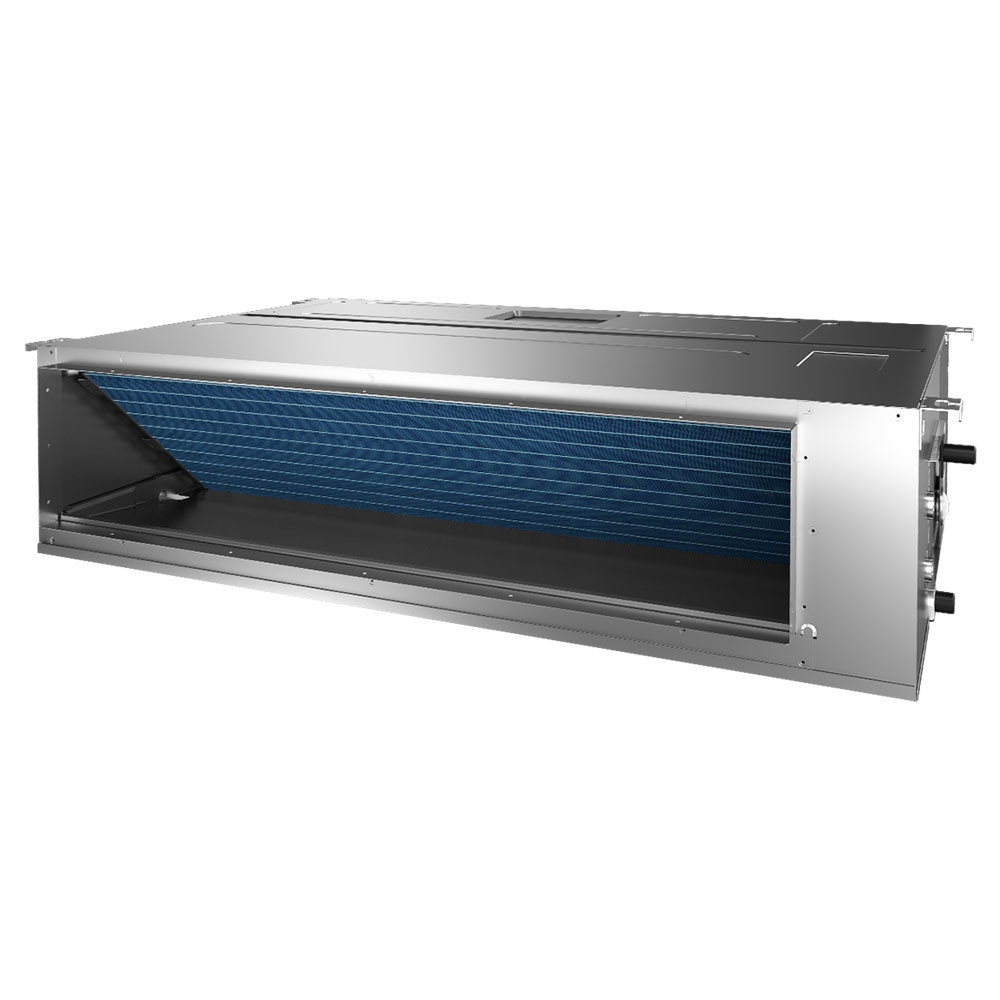

The single-phase inverter duct air conditioner MTI-24HWFNX-QRD0W 24 000 BTU has high energy efficiency in cooling and heating mode. The unit operates extremely quietly to ensure a healthy and sound sleep, good and quiet atmosphere while working or studying. It has a lightweight and compact design and built-in condensation pump.
| Warranty: | 36 months |
| Manufacturer: | Midea |
| Series: | A6 monophasic |
| Technology: | Inverter |
| Capacity: | 24 000 BTU |
| Energy Efficiency class (cooling): | A++ |
| Energy Efficiency class (heating): | A+ |
| Power Input Cooling/Heating: | 2.19 / 1.90 kW |
| Power Output Cooling/Heating: | 7.03 / 7.62 kW |
Разгледайте схеми на изплащане за този продукт
Lightweight and compact design
The weight of the A6 series has been reduced by almost 20% and the size by 12.5% compared to conventional air conditioners.
Built-in condensate pump
The powerful built-in condensate pump can raise the condensate to a height of 750 mm and saves installation time and money.
Smooth installation
A6 air conditioning systems allow installation with air intake from the rear or bottom, and the air filters are easily and quickly removed.
High static pressure
Thanks to the new DC inverter fan motors, the A6 series air conditioner can provide static pressures up to 160 Pa*.
| Warranty: | 36 months |
| Manufacturer: | Midea |
| Type: | Duct Type Air Conditioner |
| Technology: | Inverter |
| Series: | A6 monophasic |
| Indoor Unit: | MTI-24HWFNX-QRD0W |

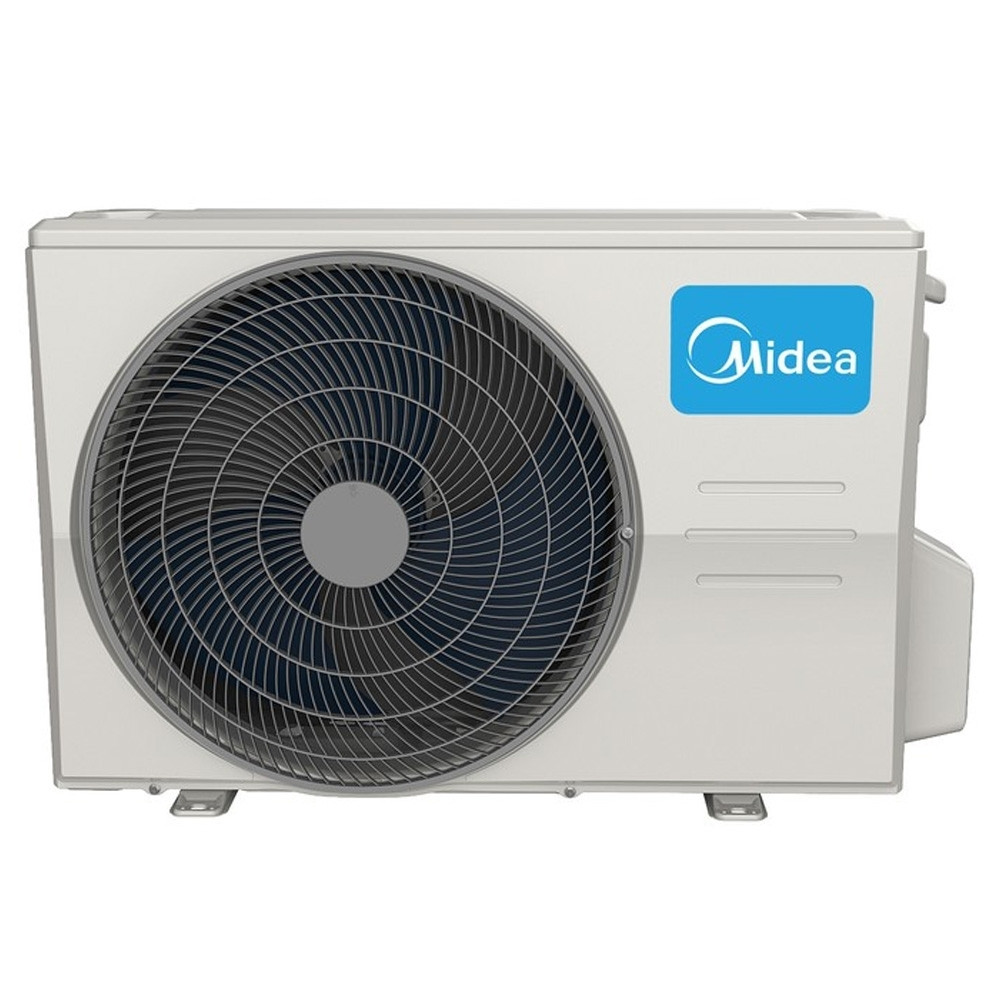

| Outdoor Unit: | MOX430U-24HFN8-QRD0W |
| Power Supply: | 230 / 1 / 50 V/ø/Нz |
| Capacity: | 24 000 BTU |
| Cooling Ca: | 7.03 kW |
| Heating Capacity: | 7.62 kW |
| Power Input Cooling/Heating: | 2.19 / 1.90 kW |
| Power Output Cooling/Heating: | 7.03 / 7.62 kW |
| SEER (Seasonal Cooling Efficiency): | 6.20 |
| SCOP (Seasonal Heating Efficiency): | 4.00 |
| Energy Efficiency class (cooling): | A++ |
| Energy Efficiency class (heating): | A+ |
| Sound Pressure Indoor Unit - Cooling: | 42 / 40 / 37 / 27 dB(A) |
| Sound Pressure Indoor Unit - Heating: | 42 / 40 / 37 / 27 dB(A) |
| Sound Pressure Outdoor Unit - Cooling/Heating: | 60 / 60 dB(A) |
| Sound Power Indoor Unit - Cooling/Heating: | 62 / 62 dB(A) |
| Sound Power Outdoor Unit - Cooling/Heating: | 69 / 69 dB(A) |
| Dimensions - Indoor Unit: | 1100 х 774 х 249 mm |
| Dimensions - Outdoor Unit: | 890 х 342 х 673 mm |
| Weight - Indoor Unit: | 32.3 kg |
| Weight - Outdoor Unit: | 43.9 kg |
| Maximum Pipe Lenght: | 50 m |
| Operation Range - Cooling: | -15 ~ 50 °C |
| Operation Range - Heating: | -15 ~ 24 °C |
| Refrigerant: | R32 |
| Maximum Height Difference: | 25 m |
| Piping Connections - Liquid/Gas: | 9.52 / 15.9 mm |
| Air Flow Indoor / Outdoor Unit - Cooling: | 1229 / 1035 / 825.1 / 3500 m3/h |
| Current for Cooling/Heating: | 10.2 (4.2 - 13.2) / 9.2 (3.8 - 11.6) A |
